1988 Audi 200 Quattro Trans-Am


words/photos: Nic Jimenez | track photos: Ernesto Che and Jorge Payan

Prior to the development of the 1988 Audi 200 Quattro development, Joseph Hoppen, manager of Audi of America Sport said, “We’ve got something to prove to the world, and we intend to prove it.” The Audi 200, during its introduction in the 1988 Trans-Am season, piloted by Hurley Haywood, Walter Rohrl, and Hans-Joachim Stuck was received with great skepticism by the top contenders (Ford and Chevrolet). Audi was practically gawked at and not considered to have any serious chance at being a competitor, much less a winner.  What happened next forever changed Audi… SEE the eGarage VIDEO.

Audi Quattro Trans Am 1988 Audi 200 Quattro Trans Am

Based on the standard Audi 200 Quattro, this competition car was prepared with 510 bhp derived from the production 5 cylinder turbo engine. The engine was completely modified and the bodyshell had enhanced aerodynamics. No four wheel drive car had ever competed in the TransAm championship. Audi’s main consideration in developing the car was in fact the four wheel drive power train. Back in the late middle 80’s rear wheel drive and  powerful engines were the standard.  As Audi would soon show the world, a powerful engine is not much use if its power is not applied to the best effect. For the decisive factor here was therefore not all power, but the most efficient way to distribute that power to all four wheels.

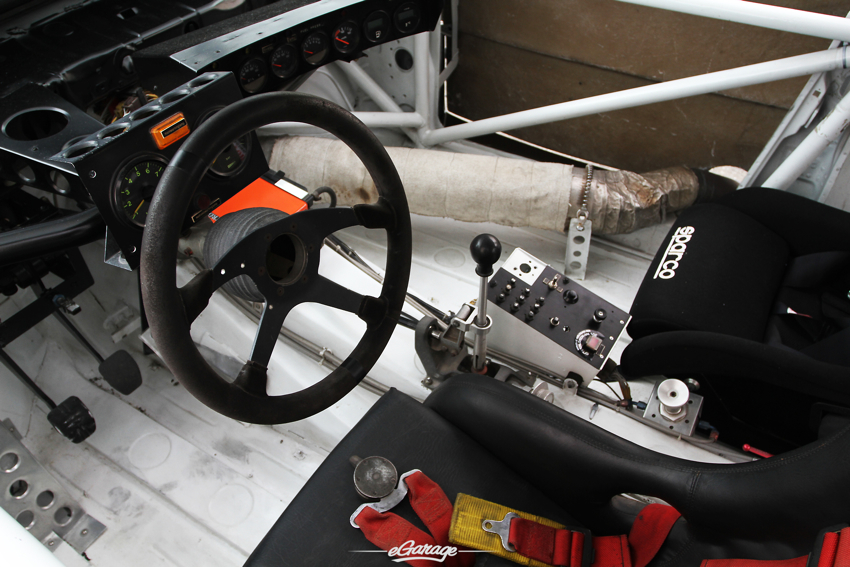

Audi Quattro 200 interior 1988 Audi 200 Quattro Trans AmAudi Quattro 200 photos 1988 Audi 200 Quattro Trans Am

TECHNICAL SPECS:

  • Turbocharged 5 cylinder aluminum in-line
  • Installed: Longitudinally, front, angled 27.30 degrees to the right
  • Capacity: 2110 cc
  • Bore and Stroke 79.5 X 85mm
  • Valves: 2 valves per cylinder
  • Power: 510 bhp (375kW) at 7500 RPM (increased to 550 bhp during the season)
  • Torque: 530Nm at 6,000 RPM
  • Turbocharger: KKK turbocharger with intercooler
  • Fuel System: Bosch Motronic
  • Ignition System: Bosch Motronic
  • Spark Plugs: Bosch with platinum electrode
  • Lubrication: Dry sump with Shell TMO oil1988 Audi Quattro 200 1988 Audi 200 Quattro Trans Am

4 WHEEL DRIVE

  • Clutch: Dual plate dry clutch
  • Transmission: All synchromesh 6 speed manual transmission
  • Center Differential: Self locking Torsen, or limited slip viscous coupling with torque split function
  • Front Differential: Limited slip viscous coupling
  • Rear differential: limited slip friction plate differential or Torsen self locking differential, or limited slip viscous coupling

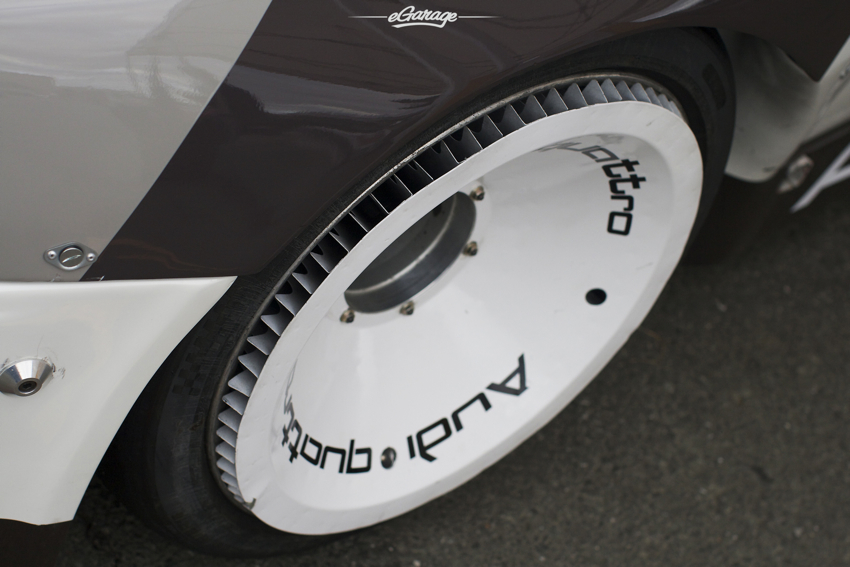

  • Drive Shafts: Constant velocity sliding joint shafts Audi Quattro BBS Wheels 1988 Audi 200 Quattro Trans Am

SUSPENSION

  • Suspension: As on Audi 200 quattro standard version: Front: McPherson struts with bottom track control arms. Rear Trapezium arm suspension
  • Shock Absorbers: Boge twin tube cartridges
  • Steering: Rack and pinion, power assisted, ratio 14:1
  • Rims: 12X16

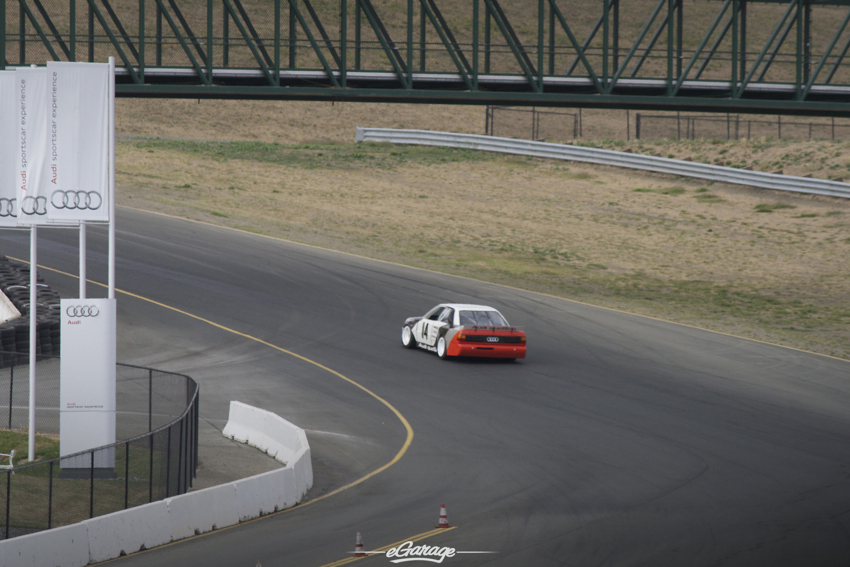

  • Tires: 25.5X13.5X16 (dry) Goodyear, 25.5X12X16 (rain) Goodyear Audi Quattro 200 race 1988 Audi 200 Quattro Trans Am

BRAKES: HYDRAULIC TWIN CIRCUT SYSTEM

  • Components: ventilated discs (front – 330mmX32mm/rear – 304mmX28mm, light alloy calipers)
  • Brake Balance: manually adjustable by driver
  • Brake Cooling: Ram air cooling
  • Pad Material: Asbestos free
  • BODY: Based on Audi 200 quattro, plastic skin panels
  • Safety Equipment: Steel cage welded to bodyshell, 6 point safety harness, fire extinguisher system, rubber safety tank.
  • Length/Width/Height: 4,897/2,033/1,340mm
  • Wheelbase: 2,687.5mm
  • Track, front/rear: 1,620/1620mm
  • Curb Weight: 1,115kg (increased during the season to 1202kg with additional weights)
  • Oil capacity: 12 litres, water 8 litres

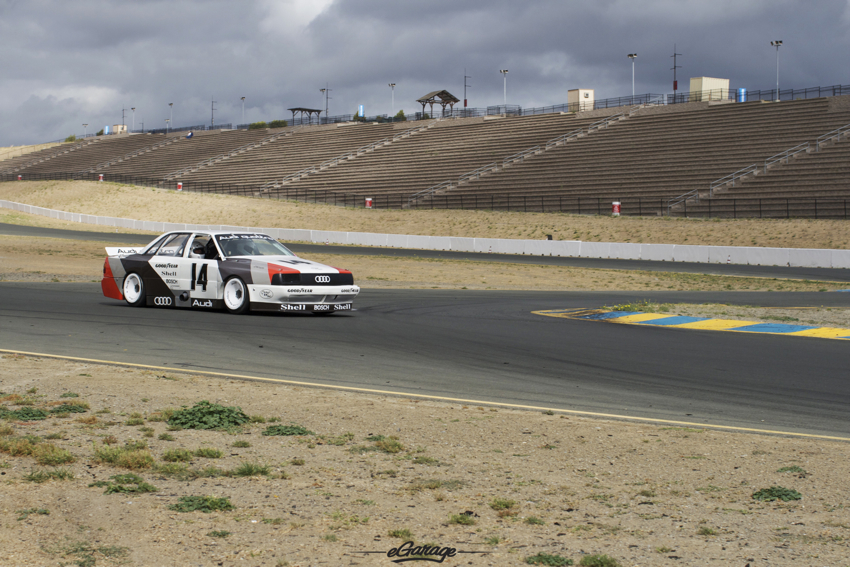

1988 Audi Quattro Trans Am 200 1988 Audi 200 Quattro Trans Am
Never before has an Audi been so respected and revered among Audi and motorsport enthusiasts. On April 16, 1988 Audi entered two 200 Quattro cars piloted by Hans-Joachim Stuck and Hurley Haywood in the race at the Long Beach circuit, where they battled against the large-displacement, naturally aspirated V8 600+ hp American touring cars. Spectators were shocked. The 200 quattro TransAm came out of the corners in a full rage, with an exclamation of the hissing wastegate valve. When the gears shifted, fire shot out of the exhaust.

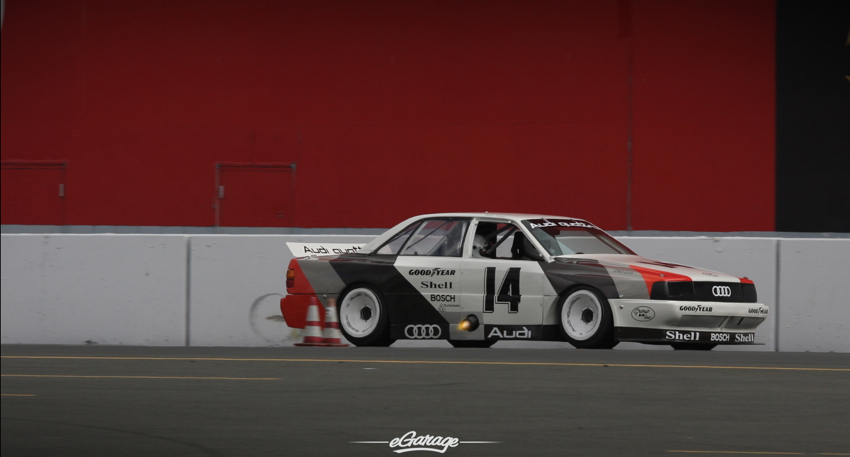

1988 Audi Quattro 200 flame 1988 Audi 200 Quattro Trans AmAudi, with the least amount of horsepower was more agile and had the best traction, it drove circles around the rear-wheel drive cars especially in the rain. Haywood recorded the first victory (#44 Car) in the second race at Dallas. By  the end of the season Audi had won 8 of 13 races and had clinched the manufacturer’s championship.

Audi Quattro 200 Trans Am 1988 1988 Audi 200 Quattro Trans Am

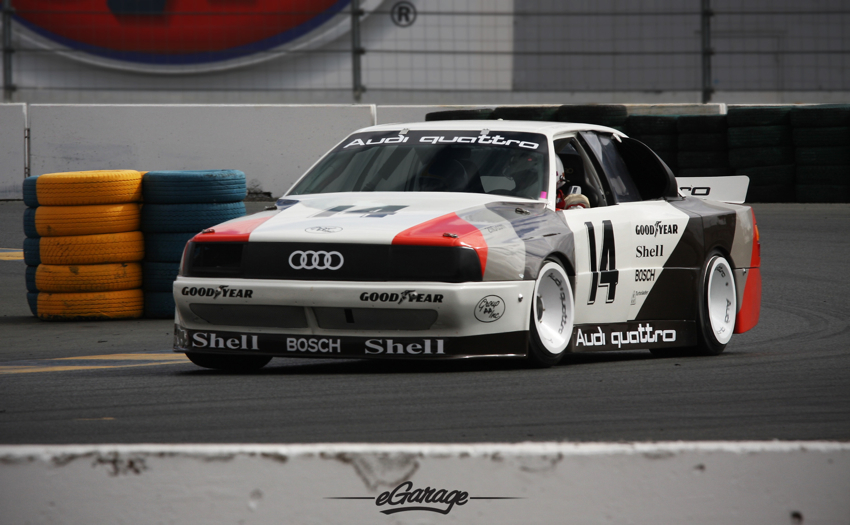

We were very lucky to have come across the #14 car. (Originally driven by Hans-Joachim Stuck) We have to confess it was by complete and total accident. We were actually on our way to Infineon Raceway (Sonoma, California) to see a rare Ferrari, but it blew its motor during warm up. With nothing left to do we stumbled onto the Audi Quattro, parked under a tent – quiet and alone. As its waste gate sounds echoed off the track even 20+ years later the car is still a show stopper! This #14 Audi Quattro 200 is very fast and colorfully amazing. We received quite the history lesson that afternoon and we are still smitten with among even these photos and videos.

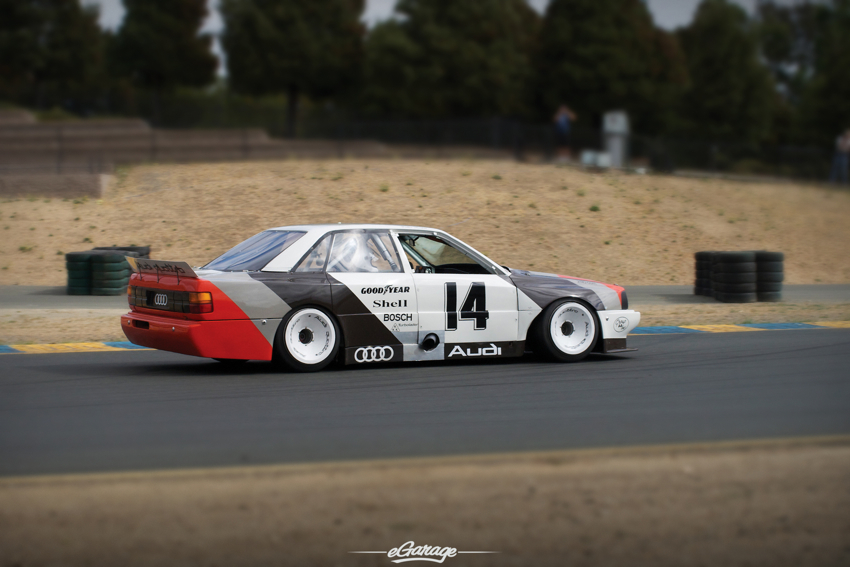

Audi 200 Quattro 1988 1988 Audi 200 Quattro Trans Am

Quattro 1988 Audi 200 Quattro Trans Am

—FOR MORE AUDI 200 QUATTRO PICS VISIT eGarage FLICKR—

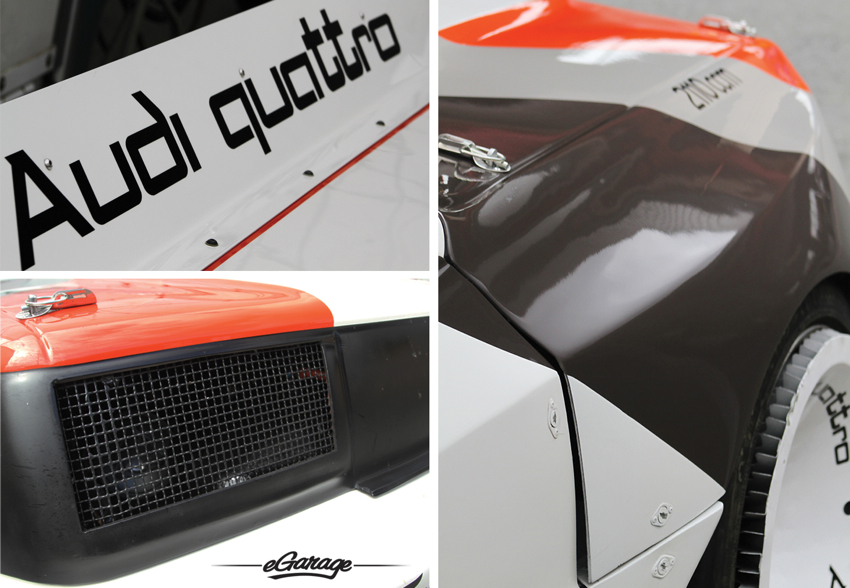

AUdi 200 Quattro photos 1988 Audi 200 Quattro Trans Am
